TOMRA E1 Expert Line is the perfect fit for industrial container processing, counting or redemption centers, processing centers, as well as high-volume retail locations.
- Reliable
- Easy to operate
- Scalable modular solution
- High performance
- Unmatched reliability and uptime
- PET, can, glass and LPB (tetra pak)
TOMRA E1 - a recycling solution that gets down to business
-
Reliable
The TOMRA E1 sorting unit enables continuous flow, making it possible to empty bins while the machine is still running, thereby avoiding downtime. Advanced object recognition and fraud protection ensure reliable counting accuracy. The machine itself is built of sturdy materials, ensuring it withstands the demands of prolonged and heavy use.
Read more about TOMRA technologies -
Easy to operate
The TOMRA E1 has an open and accessible design that makes cleaning and maintenance easy for operators and service personnel, ensuring maximum uptime. The ergonomic design makes it easy to pour bags of containers, adding less strain on the operator.
-
Scalable
The TOMRA E1 module-based system is designed to grow with your business capacity and adapt to any market or volume requirements. Expand your business, and TOMRA E1 system scales with you.
-
Active service and support
Responsive service that’s ready to help in a flash means you can rest assured that your machine is up to the task and ready to recycle all day, every day.
Read more about Tomra Service
Discover
TOMRA Expert Line E1
Click to see every module
Feeder
The feeder enhances efficiency by allowing the next bag to be prepared while the system is running. Designed with an ergonomic working height, it ensures employee comfort and makes it easy to empty containers. With a capacity of approximately 0.5 m³ and a “next bag” function, the feeder enables seamless bag processing without interruption.
Singulator
Accepts CAN, PET, LPB and glass in the same system. A rotating disc lines up containers one by one on the transport belt and transports containers to the next module.
Recognition unit
Recognize and verify containers with TOMRA Flow Technology™. Every single container is recognized, verified, and sent to the defined destination.
learn about TOMRA technologiesTransport conveyor
Module-based systems easily adjust to your needs, and the number of conveyors grows with your business.
Transportation sorting and compaction
From 1 to 16 sorting destinations. Transportation of containers to the correct destination. Air sorter for light containers (PET and aluminum). Pneumatic “kicker” for heavy containers (glass).
Modular based solution
The Expert Line system is module-based and easy to scale up or down. Up to 16 sorting destinations can be added to the basic equipment to meet business growth and changes in market requirements.
- Up to 16 sorting destinations
- Optional feeder
- Optional cabinet compactor
- Optional transport conveyor
- Optional solution with counter
Grows with your business
TOMRA Expert Line is designed to grow as your business grows and adapts to changing market requirements. Expand your business, and TOMRA Expert Line system scales with you. Our Expert Line team will assist and advice you to ensure optimal setup and alignment with your market requirements. Whether you operate one location or 100, TOMRA Expert Line will ensure the same performance and trusted durability.

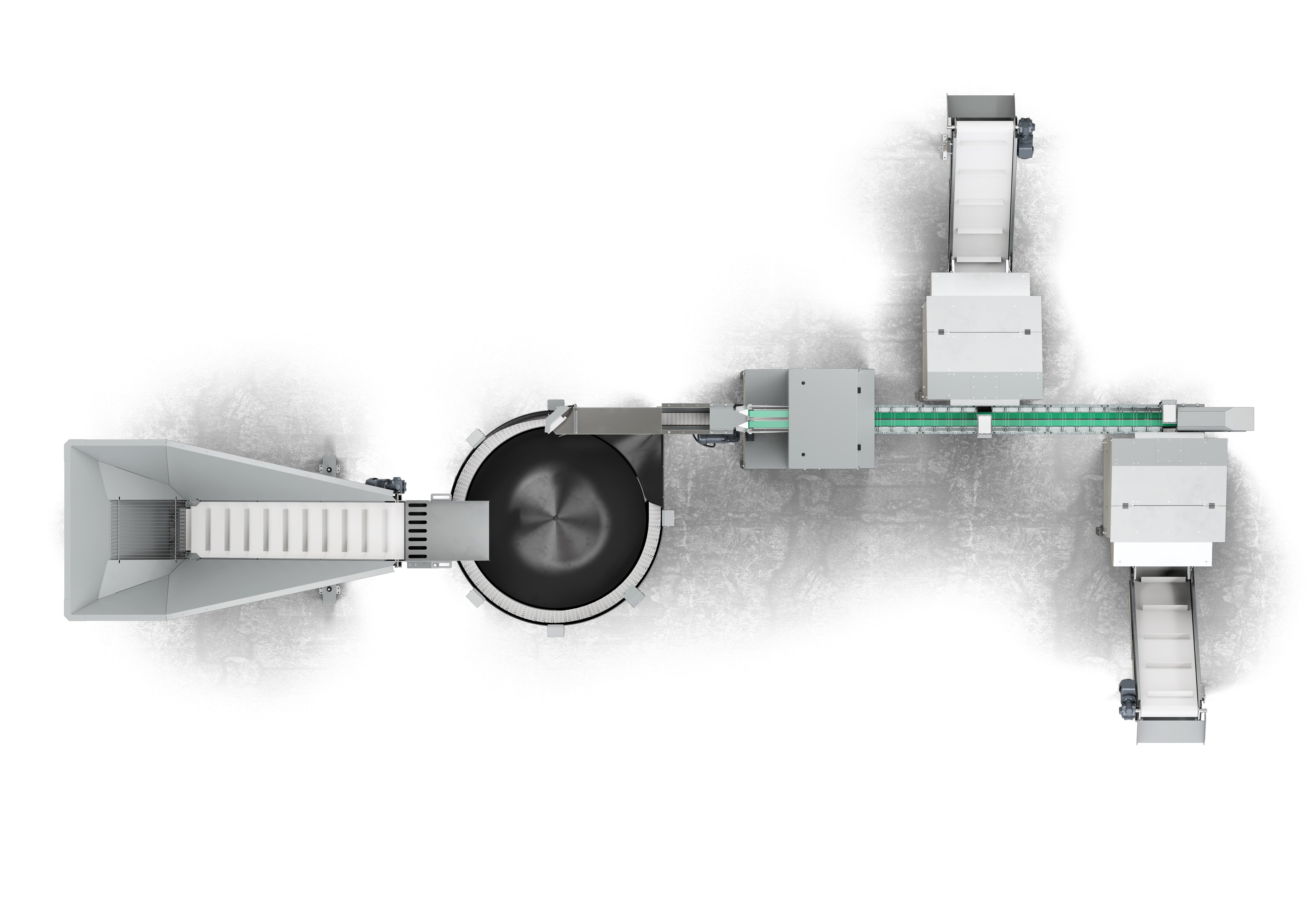

Layouts and functionality tailored to your needs
-
TOMRA E1 without compactor
-
TOMRA E1 with compactor
-
TOMRA Expert Line High Speed
A fully automated system with state-of-the-art technology to sort and count all containers in Canada’s regional recycling programs. Process up to 35 million containers and deliver the highest levels of customer service and operational efficiency.
Contact team to hear about the project -
TOMRA Expert Line Depot
An automated sorting system for Canadian depot center.
Contact team to hear about the project
TOMRA Expert Line E1 - Technical Details
| Specification | Details |
|---|---|
| Dimensions | 10000 mm x 3000-5000 mm x 1800 mm [W x D x H]* |
| Footprint | From 20 m²* |
| Accepted containers | Cans & plastic bottles |
| Configurations | Feeder: Optional Singulator: Required V-conveyor: 1-3 |
| Sorter type | Air sort (light objects) and air kicker (heavy objects) |
| Destinations | 1-16 |
| Compactor Cabinets | 1-7 (optional) |
| Compactor Cabinet configuration | PET/Can crusher (optional) |
| End of lane kits | End default or SoftDrop |
| Recognition Technology | TOMRA Flow |
| Speed capability | Up to 200 containers per minute (small can only)** Average approx. 70-120 containers per minute (mix of small and large PET and cans)** |
| Electrical | 208-400 V AC, 1-phase w/ground 15A, 3-phase w/ground 16A, 50-60 Hz |
| Digital products | Standard Basic TOMRA Digital package included As additional service, high flexibility to customize reporting and data handling to customers’ needs |
*Nominal figures for required system footprint (service area not included), configured as shown.
**Performance data may vary across markets, bottle mix, system configuration, deposit regulations, and system requirements.
Hear from our customers
"Since we put one of [these] machines into operation, our ability to clear deposits has more than tripled and became cheaper as well as nearly effortless."
Shafiullah Ahmadi,
Managing Director, Galaxy, Germany
"Why I’ve chosen TOMRA is easy to answer. No other company in Germany has such a large and strong service network. This ensures that we always have a technician nearby."
Onur Sahin,
Sales Manager, Ayyo, Germany
"The new machine is faster than the old one. Therefore, we save time and we’re able to process more empties.”
Cihan Altun,
Operator, Ayyo, Germany
Ayyo positions for the future with an easy and fast recycling solution
The trading company Ayyo has a positive and profitable experience with the TOMRA Expert Line E1, a modular beverage container counting and sorting system for recycling. This gives them peace of mind with a system they can rely on.
TOMRA Expert Line in the USA
TOMRA Expert Line solutions can be found in more than 70 redemption centers in the USA, offering tailor-made solutions to each facility depending on the requirements and preferences for each. We even have our very own facility in Buffalo, New York – the Clean Loop Recycling Center.
Bottle and can redemption centers – known across some countries as bottle depots or counting centers – are staffed recycling centers for the return of recyclable beverage containers.
