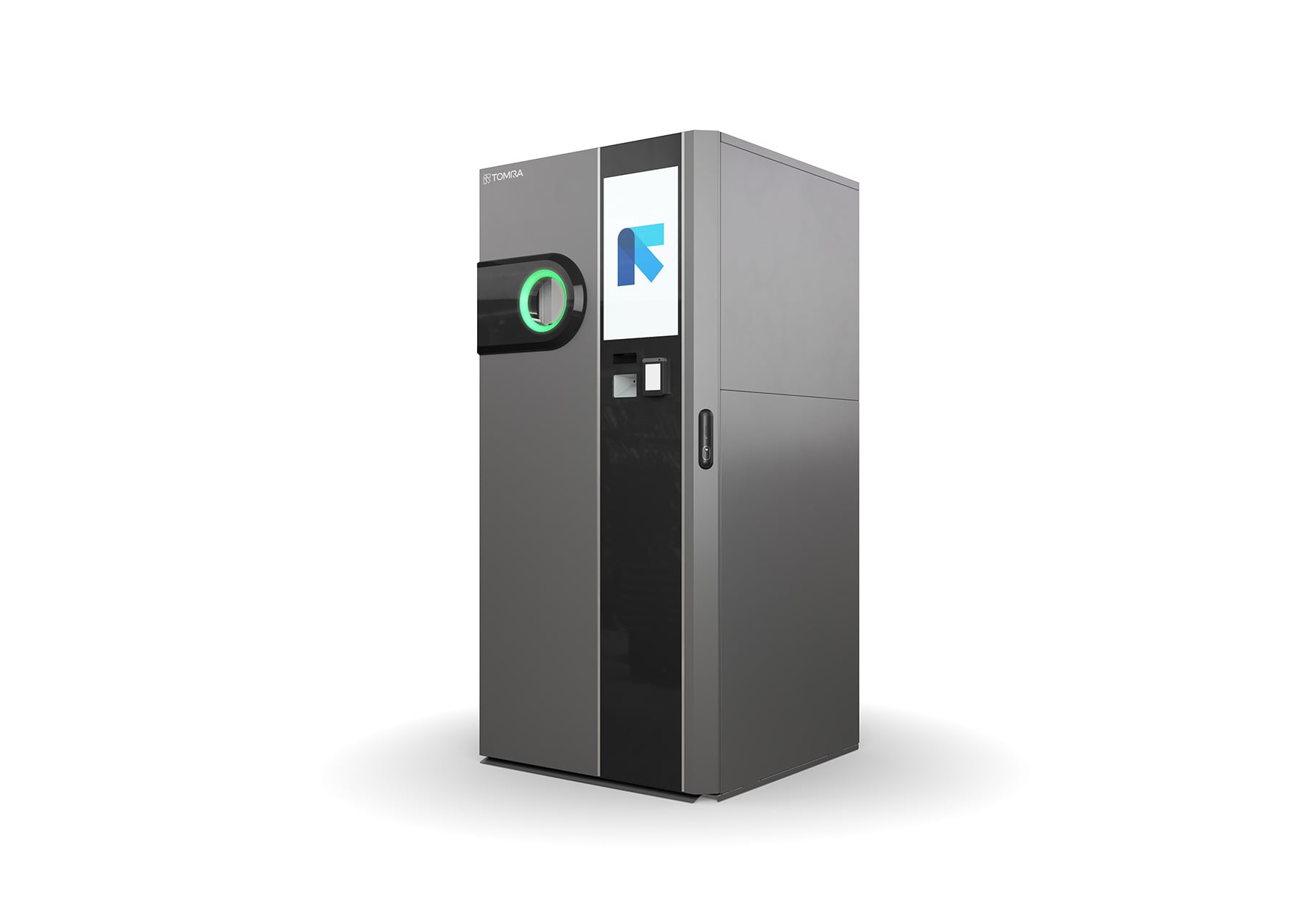

TOMRA B5 Mix

Space-smart returns

TOMRA B5 Mix reverse vending machine is the first model in TOMRA's B-series. Built to make recycling easier, it features TOMRA Essential Technology™ at its core.

Compact and easy to use, the TOMRA B5 mix plugs into a standard outlet - indoors or in covered outdoor areas - and is ready to go.

With advances automation, compact footprint, and an easy refund process, it makes recycling accessible, reliable and user-friendly. Its simple design also ensures easy cleaning and maintenance, providing a convenient and rewarding solution to keep containers out of waste and landfill.

Designed for tight spaces
Accept plastic bottles and cans
Ideal for low to medium volumes

Standalone reverse vending machine

Powered with TOMRA Essential Technology™

Storage Capacity

Max storage capacity plastic bottles per bin (up to): 420
Max storage capacity cans per bin (up to): 850

Environmental

Max operating humidity (percent): 90 %
Min operating temperature (C): 10 °C
Max operating temperature (C): 35 °C

Electrical

Power consumption max (kW): 1.9 kW
Power consumption standby (kW): 0.07 kW
Mains voltage (V): 220-240 V
Mains frequency (Hz): 50/60 Hz
Mains phase: single

Dimensions

Main unit width (mm): 880 mm
Main unit depth (mm): 930 mm
Min height main unit (mm): 1680 mm
Main unit footprint (m2): 0.8 m²
Main unit weight (kg): 324 kg
Infeed height min (mm): 1358 mm
Infeed height max (mm): 1358 mm
Adjustment range for height (mm) +25: 0 mm

Market

Available Countries: United Arab Emirates, Czech Republic, United Kingdom, Ireland, Singapore, Spain, Italy, Portugal, Sweden, Greece, Poland, Serbia
Suitable for: Convenience store

Connectivity

External IT interface: LAN (ethernet/TCP IP)
Backroom integrationsupported: No
Consumer-facing machine integration supported: No

Recognition

Recognition technology: TOMRA Essential Technology™ (Container recognition, weight detection, metal detection, 360° barcode and 2D code reading, full container detection)
Max speed capability containers (per min): 40
Accepted containers: Plastic bottles, Aluminum cans, Mix

Standard Configuration

Machine Type: Standalone
Adjustment height included: No
Bin unload direction: Front
Number of bins: 1-2
Compactor included: Yes
Compactor type: Combi crusher for plastic bottles and cans
Available colors: Dark grey, Black
User interface: Touchscreen, User guidance
Display included: Yes
Display type: Touchscreen
User interface description: 21.5” touch display with user guidance on machine screen
Display size (inch): 21.5
Printer included: Yes
Printer type: Thermal
Product ID: rv-standalone-tomra-b5-combi
Product Family: TOMRA B5

Check the technical specification

Check the technical specification
Title	Size
TOMRA B5 Mix	3.57 Mb

Plug in and start recycling

The TOMRA B5 Mix offers a convenient and efficient way to begin your recycling journey. In just 0.8 sqm you have everything needed in a professional solution that optimizes spaces and reduces manual work through automated handling.

Simple and engaging for everyone

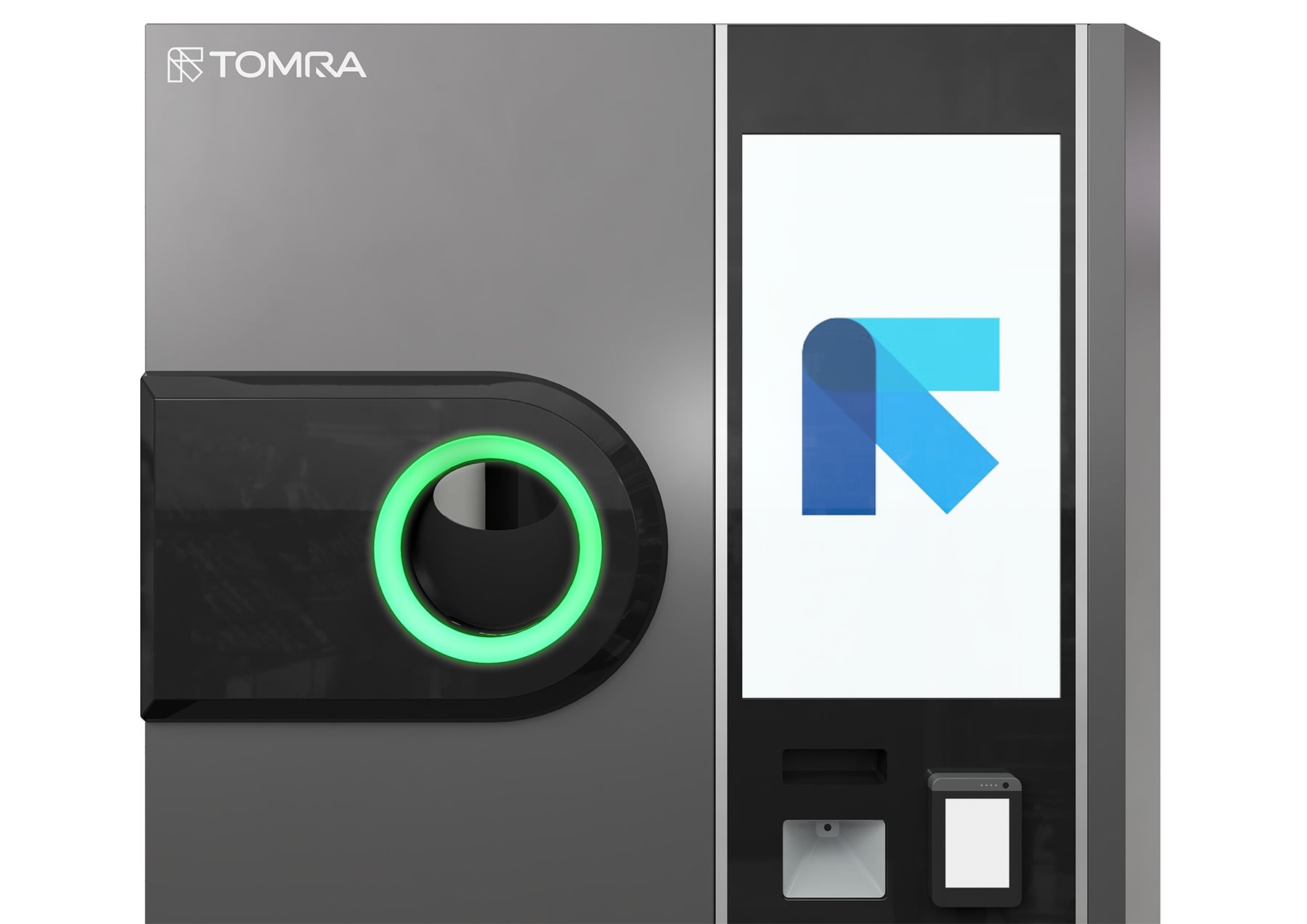

With its 21.5" touchscreen, the machine offers an intuitive interface that guides users through the container return process and even streamlines maintenance with clear on‑screen instructions. The display also serves as a powerful promotional tool, supporting images, video, and sound to create an engaging, dynamic experience.

Accurate, safe and efficient

Automated container processing ensures a hygienic, reliable alternative to manual sorting. Powered by TOMRA Essential Technology™, accepting plastic bottles and cans, it guarantees precise counting, so user receive accurate payouts quickly and can continue with their day.
