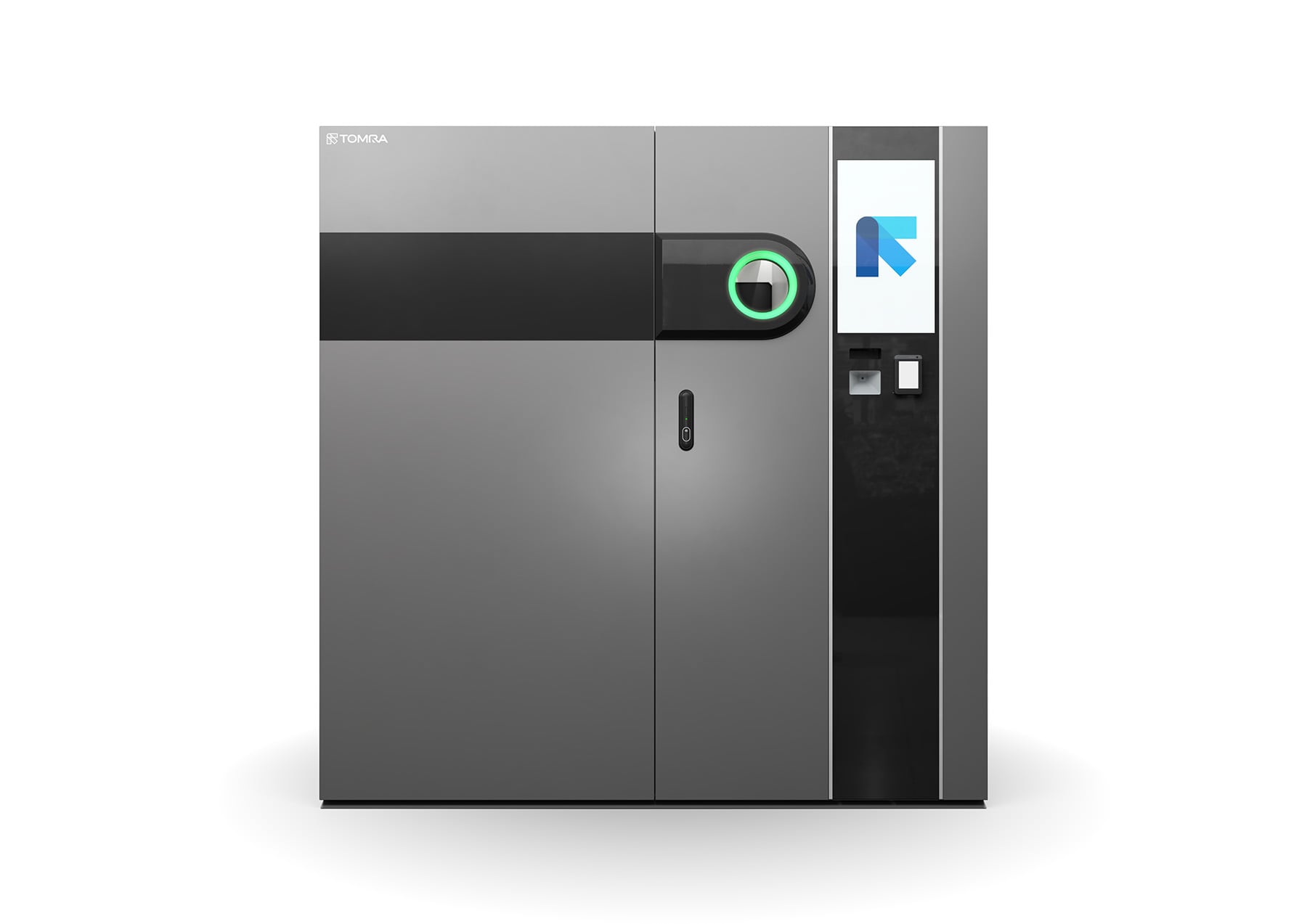

TOMRA B9 Mix

High-capacity recycling for busy spaces

Start your recycling journey with TOMRA B9 Mix. A compact and affordable reverse vending machine in a sleek and professional unit, designed to help you start your recycling journey in a simple and convenient way.

TOMRA B9 Mix offers an organized mess-free way to return plastic bottles and cans. With advanced automation, compact footprint, and an easy refund process, it makes recycling accessible, reliable and user-friendly. Its simple design also ensures easy cleaning and maintenance, providing a convenient and rewarding solution to keep containers out of waste and landfill.

  • Designed for tight, high-traffic spaces
  • Accept plastic bottles and cans
  • Ideal for medium to high volumes
Details
Standalone reverse vending machine
Powered with TOMRA Flow Essential Technology™
Specifications

Dimensions

Main unit width (mm)
1850 mm
Main unit depth (mm)
930 mm
Min height main unit (mm)
1890 mm
Main unit footprint (m2)
1.7 m²
Main unit weight (kg)
490 kg
Infeed height min (mm)
1370 mm
Infeed height max (mm)
1370 mm
Adjustment range for height (mm) +25
0 mm

Storage Capacity

Max storage capacity mixed (up to)
230

Environmental

Max operating humidity (percent)
90 %
Min operating temperature (C)
10 °C
Max operating temperature (C)
35 °C

Electrical

Power consumption max (kW)
2 kW
Power consumption standby (kW)
0.07 kW
Mains voltage (V)
220-240 V
Mains frequency (Hz)
50/60 Hz
Mains phase
single

Standard Configuration

Machine Type
Standalone
Adjustment height included
No
Bin unload direction
Front
Number of bins
2
Compactor included
Yes
Compactor type
Mix crusher for plastic bottles and cans
Available colors
Dark grey, Black
User interface
Touchscreen, User guidance
Display included
Yes
Display type
Touchscreen
User interface description
21.5” touch display with user guidance on machine screen, video and sound
Display size (inch)
21.5
Printer included
Yes
Printer type
Thermal
Product ID
rv-standalone-tomra-b9-mix
Product Family
TOMRA B9

Market

Available Countries
Singapore
Suitable for
Supermarket

Recognition

Recognition technology
TOMRA Essential Technology™ (Container recognition, weight detection, metal detection, 360° barcode and 2D code reading, full container detection)
Optional features

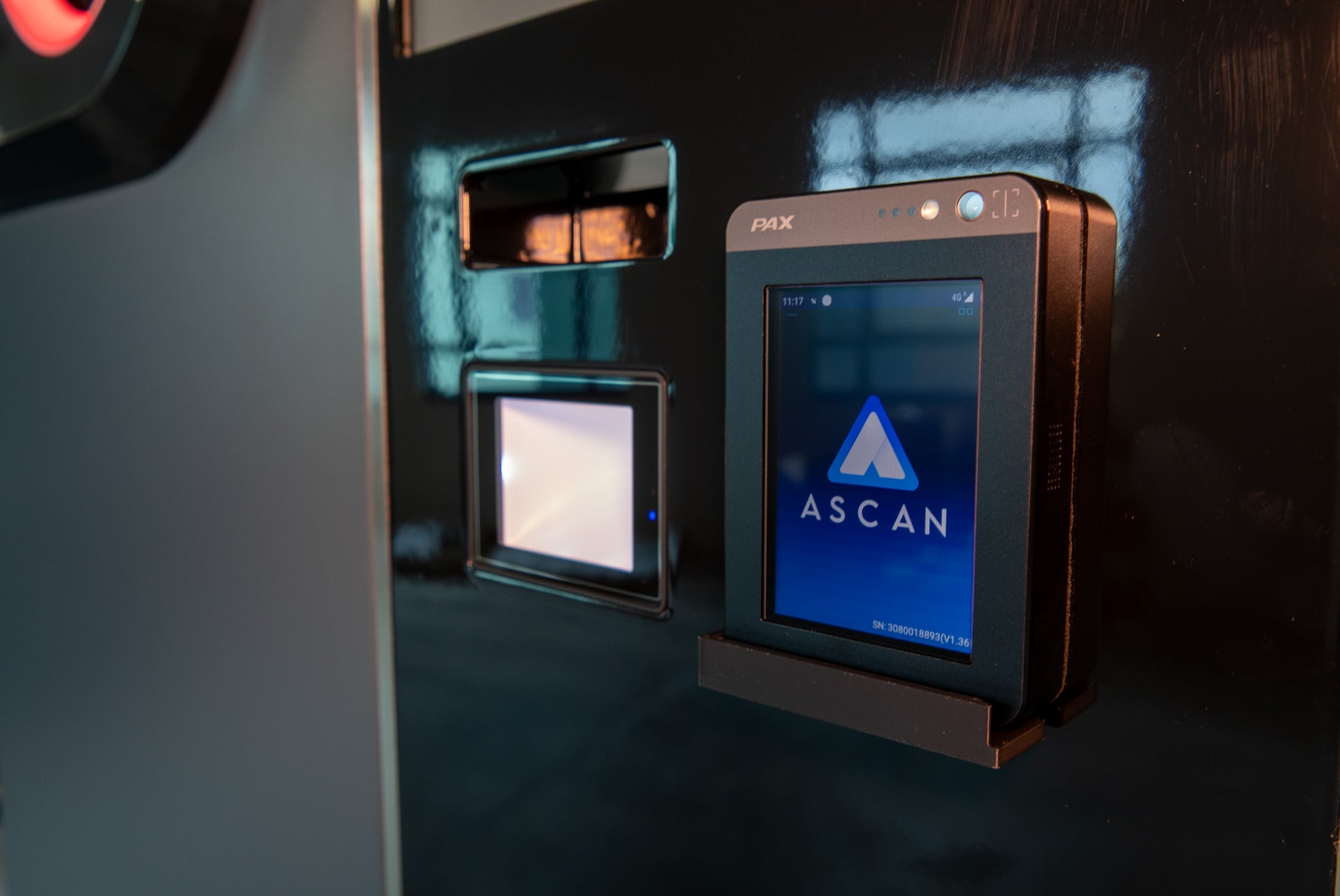

QR code and Ez-Link card reader
Max speed capability containers (per min)
40
Accepted containers
Plastic bottles, Aluminum cans, Mix

Connectivity

External IT interface
LAN (Ethernet TCP/IP) Wireless: 5G/4G/3G router and WiFi router support
Backroom integrationsupported
No
Consumer-facing machine integration supported
No
Downloads

Check the technical specification

Check the technical specification
TitleSize
TOMRA B9 Mix brochure4.07 Mb

TOMRA B9 Mix - High-capacity recycling for busy spaces

Recycling made simple

With a footprint of 1.72 sqm, TOMRA B9 Mix offers a powerful recycling solution even in places with limited space. It is designed for simplicity: to install the machine, all you need is a standard single-phase outlet and you’re ready to recycle. Indoor, covered outdoor areas or option to place the machine fully outdoors. This means recycling can be offered wherever, bringing recycling to your doorstep.

Engaging experience

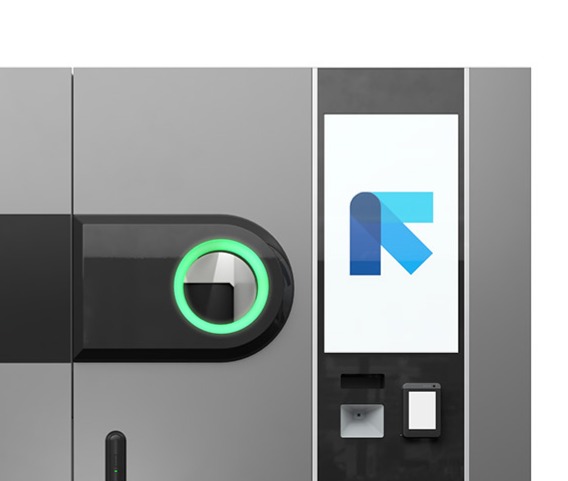

With its 21.5" touchscreen, the machine offers an intuitive interface that guides users through the container return process and even streamlines maintenance with clear on‑screen instructions. The display also serves as a powerful promotional tool, supporting images, video, and sound to create an engaging, dynamic experience.

Enjoy accurate returns with speed, safety, and efficiency

TOMRA’s Essential Technology™ ensures an efficient, secure, and future-proof way of guaranteeing refunds are accurate and safe. The machine is equipped with 360-degree barcode and 2D code scanning, as well as weight and metal sensors for accurate, reliable returns.

Click to see every detail

TOMRA Essential Technology™

Our cutting-edge image-based recognition identifies beverage containers by color, shape and size.

Combined with weight and metal sensors, it ensures precise sorting, while motion detection further helps detect and prevent fraud.

With a comprehensive database of container types, the system can be further trained to accept specific containers and sorting tasks, enhancing recycling efficiency.
