    TOMRA S1 Rugged reverse vending machine

    TOMRA S1 Rugged

    Up to the challenge, in any conditions

    Create a fast, smooth recycling experience in any environment with a standalone reverse vending machine (RVM) that’s built to withstand demanding use and exposure to the elements in semi-outdoor locations.

    The S1 Rugged is a sturdy solution with advanced digital management tools. With a larger-than-ever storage capacity, the TOMRA S1 Rugged minimizes staff interruptions with fewer bin changes, leading to more uptime and letting you focus on running your store.

    • Designed for semi-outdoors use
    • Accept cans, plastic bottles, or glass bottles
    • Footprint of 0,9m²
    • Up to 45 containers per minute
    Details
    Standalone reverse vending machine
    Powered with TOMRA Flow™
    Fully compatible with the TOMRA Digital Solutions
    Specifications

    Dimensions

    Main unit width (mm)
    816 mm
    Main unit depth (mm)
    1100 mm
    Min height main unit (mm)
    1792 mm
    Main unit footprint (m2)
    0.9 m²
    Main unit weight (kg)
    323 kg
    Infeed height min (mm)
    1210 mm
    Infeed height max (mm)
    1210 mm
    Adjustment range for height (mm) +25
    25 mm

    Storage Capacity

    Max storage capacity plastic bottles per bin (up to)
    1100
    Max storage capacity cans per bin (up to)
    3200
    Max storage capacity glass bottles per bin (up to)
    350

    Environmental

    Max operating humidity (percent)
    90 %
    Min operating temperature (C)
    0 °C
    Max operating temperature (C)
    40 °C

    Electrical

    Power consumption max (kW)
    2 kW
    Power consumption standby (kW)
    0.059000000000000004 kW
    Mains voltage (V)
    400 V 3 ph 50 Hz, 16 A fuse / 208 V 3 ph 60 Hz, 20 A fuse, C-characteristics (dedicated grounded mains supply) 230 V 1 ph 50 H, 13-16 A fuse, C-characteristics (dedicated grounded mains) V
    Mains frequency (Hz)
    50/60 Hz

    Standard Configuration

    Machine Type
    Standalone
    Adjustment height included
    Yes
    Bin unload direction
    Front
    Number of cabinets
    1
    Number of bins
    1
    Compactor included
    Yes
    Compactor type
    PET crusher / Can crusher / Mix crusher (cans, PET bottles), Glass crusher. Drop for one-way glass bottles or refillable PET bottles
    Available colors
    Light grey
    User interface
    Touchscreen, User guidance
    Display included
    Yes
    Display type
    Touchscreen
    User interface description
    10.4” touch display with high brightness, suitable for direct sunlight exposure, video and sound capabilities, user guidance on machine screen
    Display size (inch)
    10.4
    Printer included
    Yes
    Printer type
    Thermal
    Product ID
    rv-standalone-tomra-s1-rugged
    Product Family
    TOMRA S1 Rugged

    Market

    Available Countries
    United Arab Emirates, Czech Republic, United Kingdom, Spain, France, Italy, Portugal, Sweden, Germany, Greece, Hungary, Poland, Serbia
    Suitable for
    Convenience store

    Recognition

    Recognition technology
    TOMRA Flow TechnologyTM (360º instant recognition, shape recognition, full container detection, barcode recognition, metal detection)
    Max speed capability containers (per min)
    45
    Accepted containers
    Plastic bottles, Aluminum cans, Refillable bottles, Glass bottles

    Connectivity

    External IT interface
    LAN (Ethernet TCP/IP), POS compatible
    Digital tools
    Fully compatible with TOMRA’s portfolio of digital products and APIs
    Backroom integrationsupported
    No
    Consumer-facing machine integration supported
    No
    Downloads

    Get the brochure

    Take the info away with you

    Get the brochure
    TitleDescriptionSize
    TOMRA S1 Rugged Global product brochure EnglishDownload here2.15 Mb

    TOMRA S1 Rugged - Up to the challenge, in any conditions

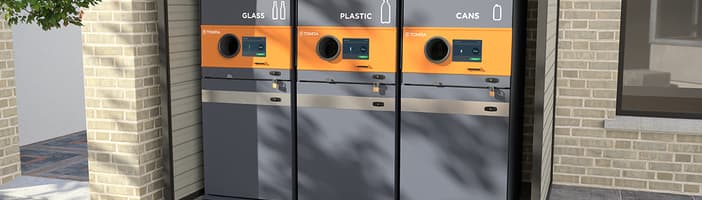

    Three TOMRA S1 Rugged deposit reverse vending machines in outdoor space for collecting glass, plastic and cans

    A durable solution to suit your environment

    The S1 Rugged is specially designed to withstand demanding use and exposure to the elements – ideally suited to metropolitan areas. Leading system integrity and resistance to wet, semi-outdoor locations, TOMRA S1 Rugged is always up to the challenge.

    Female employee stocking shelves with water bottles in a store

    Make more time for your store

    Reduce staff disruptions with a more efficient reverse vending machine. The S1 Rugged’s storage bin can take one-third more than the previous model, meaning fewer bin changes, more uptime, and less staff time spent managing your machine.

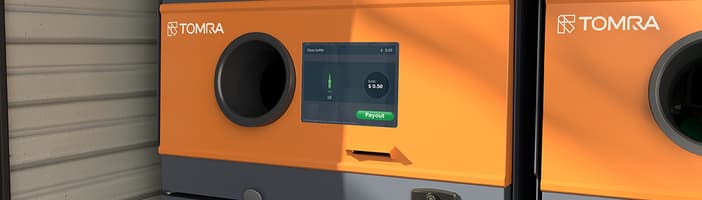

    Close up of the user display on the front of an TOMRA S1 Rugged reverse vending machine

    Create a smoother user- experience

    Satisfied recyclers will keep coming back and will spread the word about the great recycling experience you offer. Powered by TOMRA Flow Technology™, the S1 Rugged accepts containers in a smooth, fast flow, with simple on-screen instructions that are easy to read – even in bright sunlight.

    Discover more about TOMRA’s technology
    happy couple arriving to shopping

    Be ready to go when customers come to recycle

    Collect more cans, plastic, and glass bottles with a solution that stays up and running. With high capacity, and a support team that’s always at your service, customers can count on you to be ready whenever they are ready to recycle.

    discover s1 rugged

    Click to see every detail

    TOMRA S1 reverse vending machine
