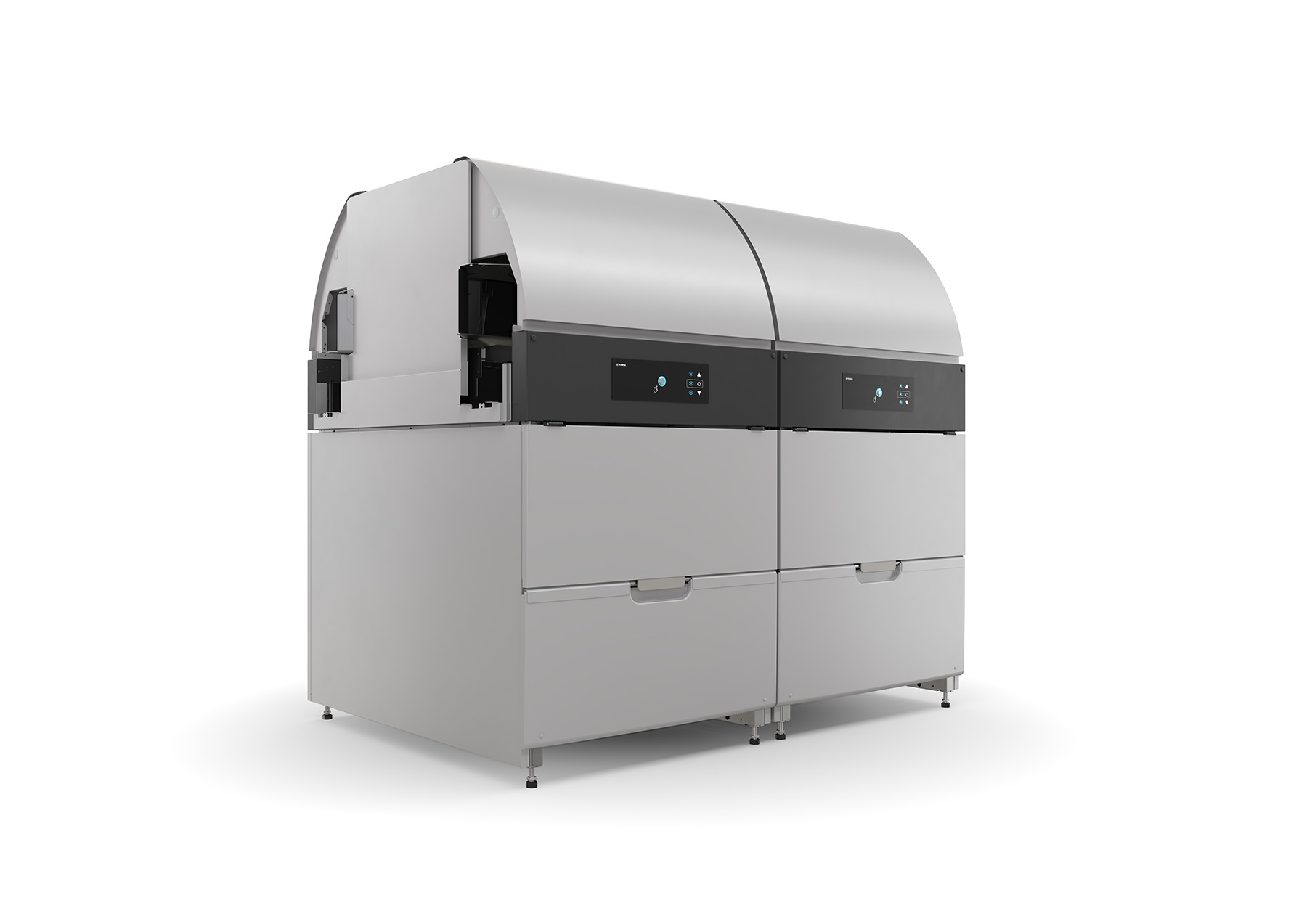

TOMRA MultiPac is a scalable backroom system designed to keep pace with high container return volumes, sorting, compacting and storing beverage containers.
Its flexible design, high capacity, and compatibility with TOMRA's leading front machines make TOMRA MultiPac ideal for busy retail environments. A single configurable backroom unit connects two recycling stations, ensuring fast and smooth recycling.
Designed for medium to large stores
Accept cans, plastic bottles, glass bottles, and crates
Footprint of 1.4 sqm per cabinet
Modular system: choose from 2 to 7 cabinets
Details
Modular reverse vending system
Powered with TOMRA Flow™
Fully compatible with TOMRA's Digital Solutions
Specifications
Dimensions
Main unit width (mm)
1400 mm
Main unit depth (mm)
1000 mm
Min height main unit (mm)
1800 mm
Main unit footprint (m2)
7.8 m²
Main unit weight (kg)
525 kg
Adjustment range for height (mm) +25
0 mm
Storage Capacity
Max storage capacity plastic bottles per bin (up to)
1500
Max storage capacity cans per bin (up to)
6000
Max storage capacity glass bottles per bin (up to)
400
Max storage capacity mixed (up to)
2000
Environmental
Max operating humidity (percent)
90 %
Min operating temperature (C)
10 °C
Max operating temperature (C)
40 °C
Electrical
Power consumption max (kW)
2.5 kW
Power consumption standby (kW)
0.06 kW
Mains voltage (V)
400 V
Mains frequency (Hz)
50 Hz
Mains phase
three
Standard Configuration
Machine Type
Backroom
Adjustment height included
No
Bin unload direction
Left, Right
End lane configuration
Table with bottle raiser, Rear chute, SoftDrop
Number of cabinets
2-7
Number of bins
1
Compactor included
Yes
Compactor type
PET crusher, Can crusher, Mix crusher, Glass crusher and Glass drop
Available colors
Dark grey, Light grey, Black
User interface
Front display with arrows and push-button
Display included
Yes
Printer included
No
Product ID
rv-backroom-tomra-multipac
Product Family
TOMRA MultiPac
Market
Available Countries
United Arab Emirates, Czech Republic, Denmark, United Kingdom, Ireland, Spain, Finland, Italy, France, Norway, Portugal, Sweden, Germany, Austria, Greece, Hungary, Poland, Romania, Serbia, Turkey
With configurations from two to 7 cabinets, offering one of the largest storage capacities available, the system can easily be expanded over time without replacing the existing installation.
TOMRA MultiPac uses intelligent routing to handle multiple container types in one system, including plastic bottles, cans, glass, and crates. The system adapts easily to changing needs while keeping returns running smoothly, even during bin changes or cleaning.
Discover more about TOMRA's Technology
Keep customer flow moving
Dual infeed allows two shoppers to recycle at the same time, reducing queues during busy periods. TOMRA MultiPac works seamlessly with TOMRA T100, R2, and T9, as well as end-of-lane solutions, enabling high throughput without adding complexity.
Easy and safe handling for store staff
TOMRA MultiPac is designed for simplicity and safety. Transparent tunnels, easy-access service openings, lightweight doors, and improved ergonomics reduce effort and make daily operations more efficient. Less time spent on the machine means more time for store operations and customers.
The improved TOMRA MultiPac
The TOMRA MultiPac backroom has been upgraded by switching from steel cabinet doors to alternative materials, such as polymers and aluminum. This makes them lighter and easier to handle, while also reducing the carbon emissions associated with producing TOMRA MultiPac.
For more information about how we assess the impacts of our products, please explore the life cycle assessment (LCA) methodology here:
Want to make the most out of your reverse vending? TOMRA’s Digital solutions and APIs make your recycling program work even harder for your store. Connect with your TOMRA reverse vending machine!
Ensure peace of mind for store colleagues. Our proactive, remote machine monitoring and network of field technicians keep your reverse vending equipment working hard for your business.
