The solution: unlocking untapped value with sensor-based ore sorting

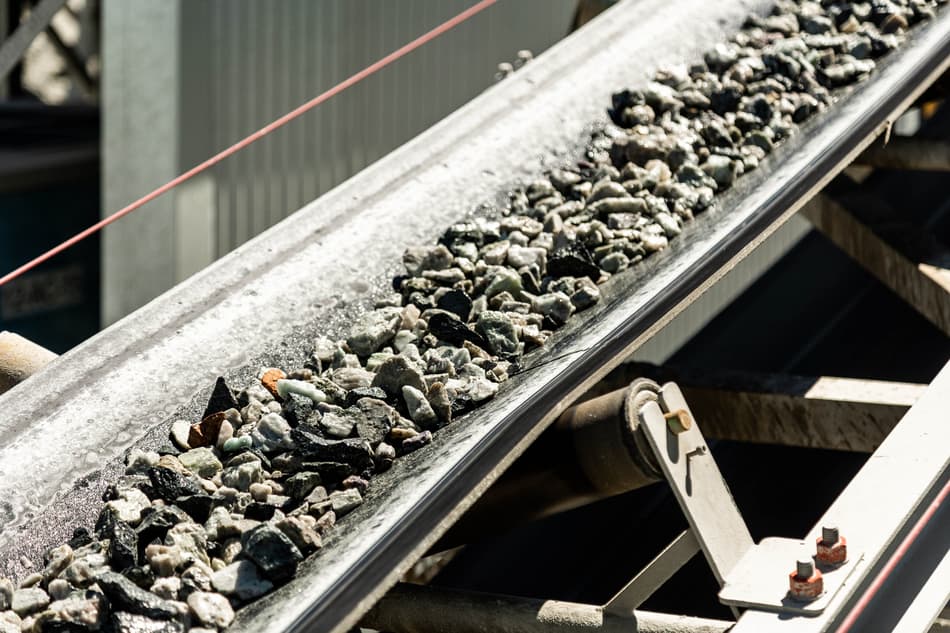

TOMRA’s industry-leading sensor-based sorting solutions rely on color cameras, X-Ray Transmission sensors, and multi-channel scanning lasers to sort the ore prior to the downstream wet processing. The sensors analyze every single particle, identify the ore and waste in milliseconds, and high-speed air jets direct the particles accordingly to the product or waste chutes, processing at a capacity up to 350t/h in a single sorter. These high-speed sensor solutions are capable of sorting a wide size range – from around 6mm to around 200mm – to maximize the removal of iron and basalt from the feed. With these technologies, it is possible to minimize the unsorted fines that are discarded or stockpiled, and it has been extensively proven that they are effective in consistently reducing the contamination of the ore to less than 4%.

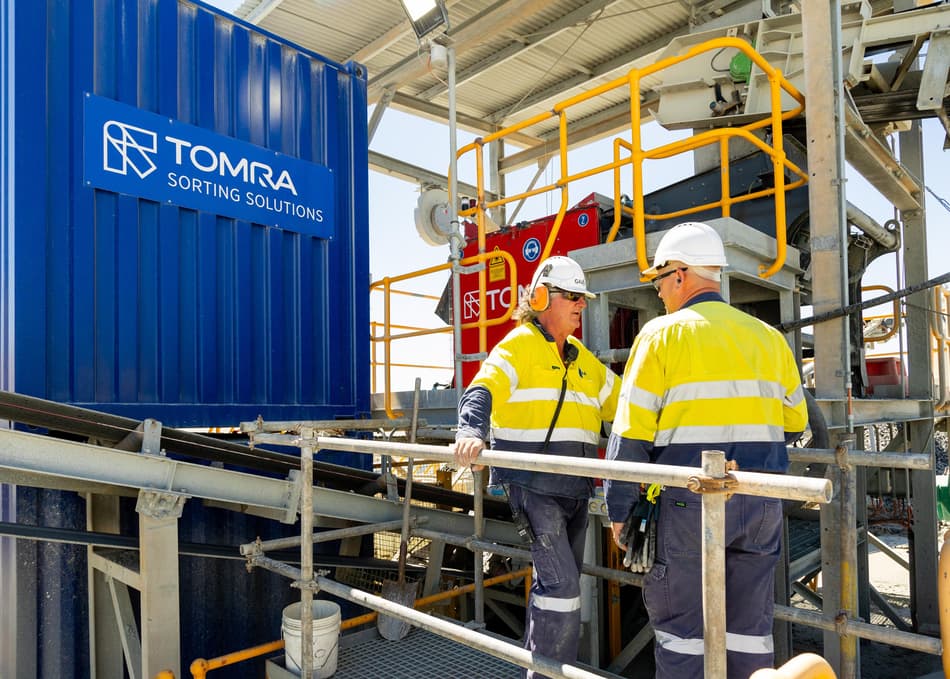

This was the experience of Galaxy Resources at its Mt. Cattlin Mine in Western Australia, where a TOMRA PRO Secondary Laser sorter has been in operation since 2021 to reduce basalt contamination in the pegmatite-hosted spodumene. Since the first day of operation, it has met and exceeded specifications, consistently achieving less than 4% basalt in the concentrate.
Operational efficiencies can be further improved with connectivity to the cloud-based subscription service TOMRA Insight, which turns the sorters into connected devices that generate valuable process data. Mining operations are able to measure the contamination level in real time, and hence the mining quality. They can also monitor the distribution of the particle sizes, and consequently the efficiency of the upstream crushing and screening equipment. TOMRA Insight also gives visibility on the individual sorter’s availability and usage, helping to optimize the process. In addition, it enables the operator to accurately track any faults as they occur and improve the maintenance processes, so that the sorting plant is always operating at its best.
A partnered approach for a tailored solution
TOMRA works in partnership with clients to develop the tailored solution that matches their requirements. It brings its in-depth understanding of the process and expertise, helping clients from the development phase to purchasing and plant integration with quality test work on samples from the mine at its test center and flowsheet guidance. Its solution perfectly integrates the sorting into the overall process stream, for seamless operation. The sorters are specified to match the capacity of the crushing and screening plant, and downstream wet processing plant, maximizing productivity.

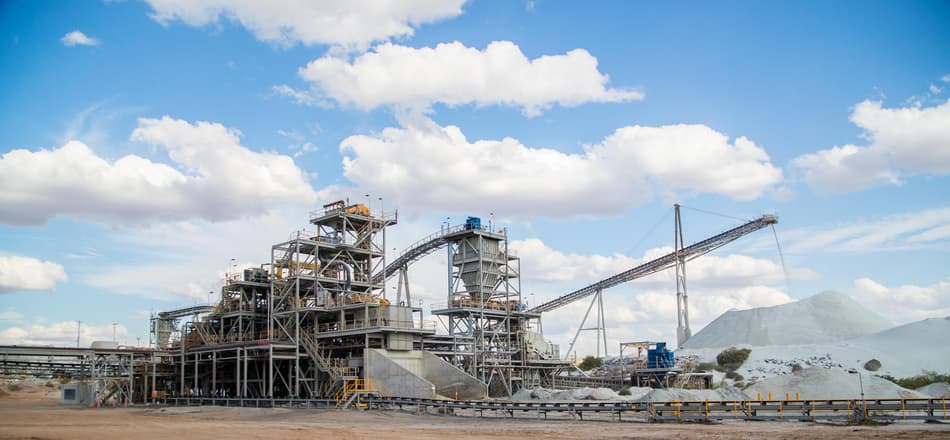

This was the approach TOMRA adopted for the design of the world’s largest lithium sorting plant for Pilbara Minerals in Australia. It worked closely with the client’s metallurgical team, completing extensive testwork at the TOMRA Test Center in Sydney, running sample ores from the mine at capacity on production sorters. Based on the results of the testwork and its experience and ability to provide expert local support, TOMRA was awarded the contract. The involvement of the TOMRA team extended beyond testing and supply of equipment to include assistance with the plant layout and understanding of the implications of sorting on the upstream mining and downstream process of the ore, adding to the efficient operational ramp-up and technical optimization.
TOMRA’s close relationship with its clients continues after installation and commissioning of the sorting plant, to keep it operating at its best with tailored service agreements.
With TOMRA’s sensor-based ore sorting solutions, mining operations can not only improve the efficiency of their processing plants, but most importantly unlock value from stockpiled materials and even expand their resources, exploiting ore bodies with higher contamination or search for new mining opportunities in areas with higher iron or basalt content.
For more information about lithium sorting, you can download our PDF
